Figure 1:The journey from digital design to reliable field performance. DFM integrates manufacturing considerations (like CNC machining) directly into the product development cycle for GIS hardware, ensuring robustness from the start.
Introduction
For GIS professionals who rely on hardware for data collection, sudden equipment failure in the field is undoubtedly a nightmare. Whether it’s a surveying instrument crashing, a sensor getting water damaged, or a drone component breaking, the cost far exceeds just repair fees; it represents the permanent loss of valuable project time and data. The current situation shows that many failures are attributed to harsh environments or improper use, but the deeper, core problem often lurks in the product design drawing stage—the design fails to fully consider manufacturability and limits.
This article will explain how systematically applying DFM principles can fundamentally reverse this situation, leading to the design of high-performance hardware that is both robust and easy to produce.
Why is the reliability of GIS equipment determined first in the CAD model?
For GIS equipment, the harsh environments of field use dictate that reliability must be addressed at the source. This source is the product’s CAD model. A core concept is that quality is designed in, not inspected in. Taking the metal base or housing of surveying equipment as an example, during CNC Machining for Survey Equipment, a seemingly minor design feature, such as an internal sharp corner or non-uniform wall thickness, can directly cause vibration, excessive tool wear, or internal stress concentration during machining. These can become hidden dangers leading to future fractures in the field.
Research from the National Institute of Standards and Technology (NIST) indicates that up to 80% of product quality and full lifecycle costs are locked in during the design phase. Therefore, Design for Manufacturing is not a post-design optimization step but should be regarded as the cornerstone of ensuring product reliability. Understanding how to design a product for manufacturing means that designers foresee its manufacturing process on the machine tool from the very first line they draw.
What DFM “iron-clad rules” must be followed when designing waterproof and corrosion-resistant sensor housings?
For sensors operating in humid, salty, or extreme temperature environments, the housing is the first line of defense. Successful Sensor enclosure prototyping is inseparable from adhering to the iron-clad rules of Design for Manufacturability.

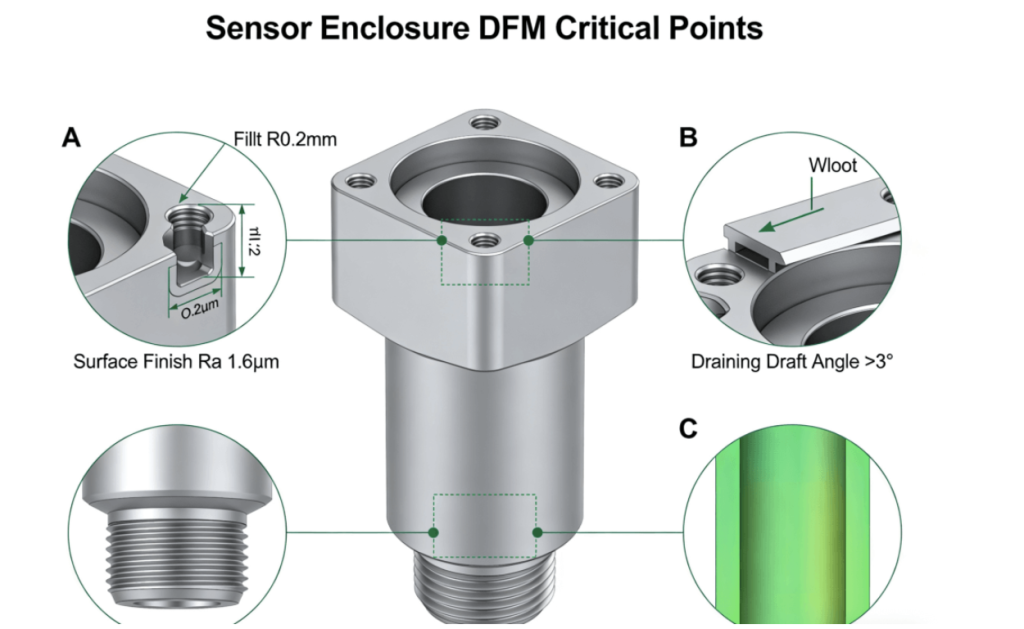

Figure 2: Key DFM considerations for waterproof sensor housings. Attention to seal groove design, anti-water-trapping features, and uniform wall thickness is critical for long-term reliability in harsh environments.
The Scientific Basis for Material Selection
Material is the foundation for resisting environmental erosion. For GIS sensors, alloys with good corrosion resistance and easy machinability, such as 5000 or 6000 series aluminum, should be selected. This not only ensures the long-term stability of the housing but also guarantees good surface finish and dimensional accuracy during the custom machining services process, laying a solid foundation for subsequent surface treatments like anodizing.
Error-Proofing Strategies in Structural Design
Structural design directly determines the sealing performance and long-term reliability of the housing.
- Rational Seal Groove Design
Standard O-ring seal grooves must have dimensions strictly designed according to standards (such as AS568 or ISO 3601) to ensure the O-ring generates the appropriate compression ratio. The surface roughness of the groove bottom needs to reach Ra 1.6μm or higher to provide an effective sealing surface. Simultaneously, the groove edges must be designed with appropriate fillets (typically R0.1-0.3mm) to avoid cutting the seal during installation and to eliminate stress concentration points caused by sharp corners.
- Avoiding Water-Trapping Structures
The top surface of the housing should be designed as a slight dome or at least with significant drainage slopes (recommended greater than 3°) to ensure rainwater or condensation quickly slides off without any areas of stagnation. The height of all screw hole bosses should exceed the mating plane to prevent liquid from pooling around the screw heads.
- Ensuring Uniform Wall Thickness
Throughout the housing design, strive to maintain consistent wall thickness. Transition areas where thickness changes must use smooth gradients (e.g., using a slope greater than 3 times the wall thickness difference). This effectively avoids internal stress, warping deformation, or even sink marks caused by uneven cooling rates during injection molding or die casting.
Furthermore, tolerance setting is an art. Critical mating surfaces require precise tolerances, while non-critical areas should be appropriately relaxed to effectively control the cost of custom machining services. Manufacturers certified with IATF 16949 (automotive grade) and AS9100D (aerospace grade) are particularly adept at achieving the optimal balance between stringent tolerances and reliability.
How can UAV surveying components achieve extreme lightweight and high strength through DFM?
The performance and endurance of UAV surveying directly depend on the weight of their components. Achieving extreme lightweight and high strength through DFM is the core goal of UAV/Drone Component Machining.
Achieving this goal requires selecting the most suitable process based on the design intent. Traditional CNC milling is suitable for manufacturing components with high-precision mounting interfaces and excellent surface finish. For components with internal complex lattice or topology-optimized structures, Design for Additive Manufacturing (DfAM) shows significant advantages. For instance, NASA tech briefs have demonstrated how additive manufacturing optimizes satellite components, significantly reducing weight while ensuring strength. This simulation-driven lightweight design represents an advanced form of custom parts manufacturing.
The key is that designers must define the target process from the initial design stage. If CNC machining is chosen, features conducive to fixture clamping need to be designed. If metal 3D printing is selected, self-supporting angles and thermal stress relief must be considered. Successful custom parts manufacturing begins with a profound understanding and forward-thinking design based on process characteristics.
What key adjustments must DFM strategies undergo when a prototype is successful and mass production is needed?
When transitioning from prototype validation to high volume CNC machining, the focus of DFM needs to shift from “achieving functionality” to “optimizing efficiency, cost, and consistency.”
Design Optimization for Efficiency Enhancement
To adapt to mass production, designs require targeted optimization. For example, merging parts with similar functions to reduce assembly steps, or splitting overly complex single parts without affecting functionality to lower machining difficulty and reduce cycle time per part.
Designing for Manufacturing Convenience
In mass production, every minute translates to cost. Designs should include features dedicated to rapid clamping and positioning, such as process locating holes, which can significantly reduce setup time on the machine tool. Simultaneously, optimizing the nesting of parts on the stock plate maximizes material utilization and reduces waste.
H3: Collaboration with Professional Partners
At this stage, close collaboration with partners experienced in CNC machining services is crucial. They can provide DFM reports optimized for mass production, indicating which features can be fine-tuned for further efficiency gains. This practice of involving manufacturing experts early minimizes unit cost. As detailed in this comprehensive DFM guide, design for mass production is key to cost reduction.
How to evaluate and select a machining partner that can truly deliver DFM value for you?
Choosing the right manufacturing partner is the final critical DFM step in transforming an excellent design into a high-quality product. When evaluating custom machining services suppliers, look beyond simple price comparisons.
An ideal partner should become an extension of your design team. Suppliers like JS Precision, with multi-industry certifications and extensive experience, often provide more valuable manufacturing insights. To gain a deeper understanding of the capabilities of modern CNC machining, refer to this CNC machining capability overview.
Conclusion
In summary, the remedy for the field reliability challenges of GIS hardware lies not merely in using more expensive materials or performing more frequent maintenance, but in proactively infusing manufacturing thinking into the design stage. DFM is a systematic preventive philosophy that fundamentally enhances product resilience, controls costs, and accelerates time to market by avoiding manufacturability defects early in the design phase.
If you are developing the next generation of surveying instruments, sensors, or UAV platforms, do not treat design and manufacturing as separate silos. Immediately consult precision manufacturing experts with profound DFM experience to obtain a professional analysis of your design draft, laying the most solid foundation for your project’s success.
H2:Author Biography
This article was contributed by an engineer with over a decade of experience in the precision manufacturing field, focusing on providing solutions from complex prototypes to scaled production for the high-tech industry. The team, with its expertise in CNC machining and additive manufacturing, as well as stringent certifications such as ISO 9001, IATF 16949, and AS9100D, continuously helps clients transform innovative designs into stable and reliable high-performance products.
FAQs
Q: We only do small-batch prototyping. Is DFM too costly for us?
A: On the contrary. Applying DFM at the prototyping stage allows for discovering and correcting design flaws at the lowest cost, avoiding carrying problems into later stages, thereby saving significant overall development time and cost. It is the investment with the highest cost-effectiveness.
Q: What are the main DFM considerations differentiating metal 3D printing and CNC machining?
A: The core difference lies in design freedom versus constraints. Metal 3D printing excels at complex internal channels and lightweight lattice structures but requires consideration of supports and thermal stress. CNC machining excels at high-precision flat surfaces, right angles, and excellent surface finish but requires consideration of tool interference and fixturing.
Q: After submitting a design, how long does it typically take to receive DFM feedback?
A: Professional manufacturing service providers typically provide a detailed DFM report within 1-2 business days of receiving the 3D model. This report includes manufacturability analysis, potential risk points, and optimization suggestions to enable rapid design iteration.
Q: In high-volume production, where are the main cost savings from DFM realized?
A: They are mainly reflected in four areas: reduced material waste, shortened cycle time per part, lower rejection rates, and simplified assembly processes. These optimizations are amplified during mass production, resulting in significant overall cost savings.
Q: What design files do we need to provide to get the best DFM advice?
A: Providing complete 3D CAD files (e.g., STEP format) and 2D drawings mark critical tolerances, surface requirements, and performance needs is ideal. The more complete the information, the more accurate and efficient the DFM analysis will be.
