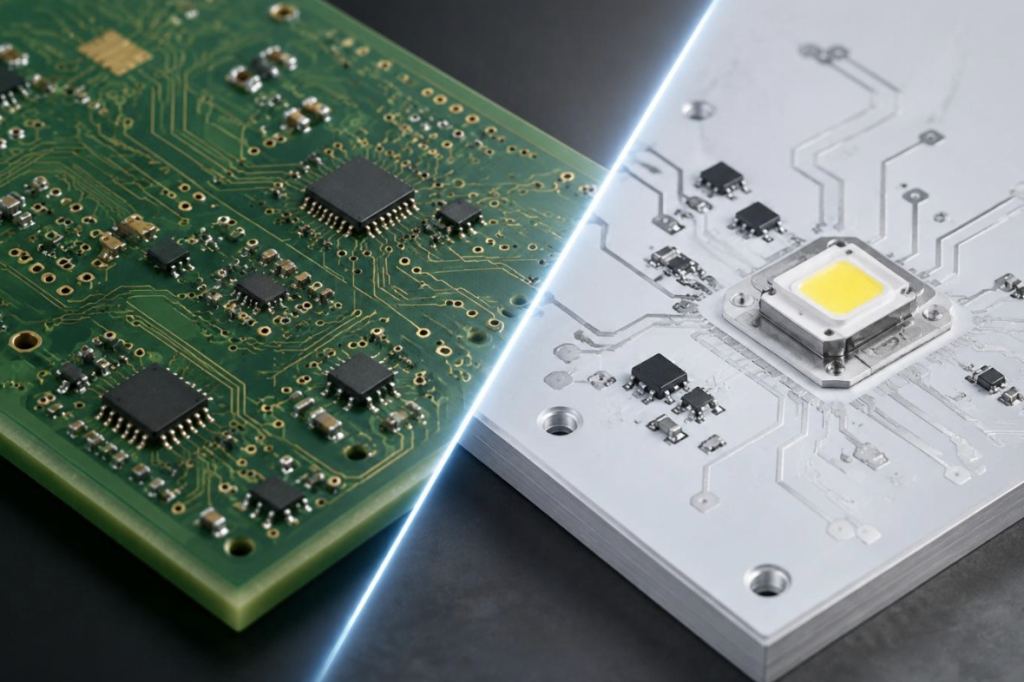

Choosing a PCB substrate is one of the earliest decisions in an electronics project, but it is often treated as a default setting rather than an engineering choice. For many products, FR4 is the practical starting point. It offers a useful balance of electrical insulation, mechanical strength, routing flexibility, availability, and cost. For heat-intensive designs, however, an aluminum PCB may provide a more effective thermal path.
Neither material is universally better. The right choice depends on the board’s power density, layer count, operating environment, signal requirements, mechanical structure, and production goals. Understanding the differences between FR4 and aluminum PCB materials can help engineers avoid over-specifying a board, underestimating thermal problems, or choosing a construction that creates manufacturing limitations later.
What Is FR4 PCB Material?
FR4 is a glass-fiber-reinforced epoxy laminate used extensively in printed circuit boards. Woven fiberglass provides mechanical reinforcement, while the epoxy resin acts as the insulating matrix that holds the structure together. Copper layers are bonded to the laminate to create the conductive paths of the circuit.
The term FR4 describes a material classification rather than one single universal laminate recipe. Different manufacturers and grades can have different glass transition temperatures, dielectric properties, thermal expansion behavior, resin content, and processing characteristics. As a result, specifying only “FR4” may be insufficient for a demanding design.
FR4 is widely used for:
- Consumer electronics
- Industrial control boards
- Computer and communication equipment
- Sensors and embedded systems
- Power supplies with manageable thermal loads
- Prototypes and general-purpose multilayer PCBs
For an overview of FR4 construction, electrical properties, thermal behavior, and common applications, an FR4 PCB material guide can help engineers organize the main specifications before choosing a laminate.
What Is an Aluminum PCB?
An aluminum PCB, also called a metal core PCB or MCPCB, uses a metal base to help transfer heat away from selected components. A typical structure includes a copper circuit layer, a dielectric insulation layer, and an aluminum base. The dielectric layer must provide electrical isolation while also allowing heat to travel from the circuit toward the metal backing.
Aluminum PCBs are often used in designs where thermal management is a major requirement, including:
- LED lighting
- Power conversion
- Motor control
- Automotive electronics
- Industrial equipment
- High-current or high-power modules
The aluminum base does not replace the need for a complete thermal design. Component placement, copper area, thermal vias where applicable, interface materials, airflow, enclosure design, and external heatsinks can all affect the final temperature of the product.
FR4 vs Aluminum PCB: Quick Comparison
| Design factor | FR4 PCB | Aluminum PCB |
|---|---|---|
| Base structure | Fiberglass and epoxy laminate | Metal base with an insulating dielectric layer |
| Main strength | Routing flexibility and broad manufacturing availability | Heat spreading and mechanical support |
| Typical layer options | Commonly available in single-layer and multilayer designs | Often used for simpler thermal structures, though constructions vary |
| Thermal behavior | Suitable for moderate heat when the layout and cooling are adequate | Better suited to transferring heat toward a metal base or heatsink |
| Fine-pitch routing | Generally flexible for dense multilayer layouts | Depends on the specific metal-core construction and design rules |
| Cost factors | Often economical for general-purpose boards | Material and dielectric structure may increase cost |
| Common applications | Controllers, digital boards, embedded systems, communications | LED, power, motor, automotive, and heat-sensitive designs |
| Main limitation | Lower thermal conductivity than a metal-backed structure | Less flexible for some multilayer, via, and routing requirements |
This table is a starting point rather than a substitute for a stackup and thermal review. A particular FR4 grade or aluminum PCB construction may perform differently from the general category.
1. Consider Heat Dissipation First
Thermal performance is usually the clearest reason to consider aluminum PCB construction. FR4 is primarily an electrical insulating material, so it does not conduct heat through the board as efficiently as a metal-backed design. Heat can still be managed on FR4 through copper planes, thermal vias, heatsinks, airflow, and careful component placement, but the solution may require more space or additional mechanical parts.
An aluminum PCB creates a more direct path from the circuit layer through the dielectric to the metal base. That can help spread heat across the board and transfer it to a chassis or heatsink. This is particularly useful when the design has high-power LEDs, concentrated heat sources, or a limited enclosure volume.
2. Evaluate Layer Count and Routing Density
FR4 is usually the more flexible choice for dense digital designs because it is commonly available in multilayer stackups. Multiple signal layers, power planes, ground planes, buried connections, and controlled-impedance structures can be arranged to meet complex routing requirements.
Aluminum PCBs can support useful circuit layouts, but the construction may impose more limitations on layer count, via structures, thermal isolation, or signal routing. The exact capabilities depend on the manufacturer’s process and the selected metal-core stackup.
If a board needs multiple high-speed interfaces, dense BGA escape routing, many internal planes, or complex impedance control, FR4 may be the more practical foundation. If the board is primarily a thermal carrier for LEDs or power devices, a simpler aluminum PCB structure may be more suitable.
3. Compare Electrical and High-Frequency Requirements
FR4 is suitable for a large range of digital, analog, and low-to-moderate frequency applications. It provides good insulation and supports conventional multilayer PCB design. Its dielectric constant and loss characteristics, however, vary by grade, resin content, glass style, frequency, and the way the measurement is performed.
Aluminum PCB structures require additional attention because the metal base sits close to the circuit through an insulating dielectric. This can affect capacitance, signal behavior, grounding strategy, and the layout of sensitive traces. Metal-core construction may work well for a thermal power board but may require a different design approach for a dense, high-speed communication board.
4. Look at Mechanical and Environmental Conditions
FR4 provides a strong and stable base for many electronic products. It can be used in rigid single-layer, double-layer, and multilayer boards, and it is compatible with a wide range of standard fabrication processes. The selected grade still matters when the product will experience elevated temperatures, repeated thermal cycling, vibration, or demanding mechanical conditions.
Aluminum can provide useful stiffness and may help integrate the PCB with a chassis or thermal structure. It can also reduce the need for a separate heat spreader in some products. At the same time, the board’s mechanical design must account for differences in expansion, mounting, insulation, grounding, and machining requirements.
When Should You Choose FR4?
FR4 is usually a strong choice when the design requires broad routing flexibility, multiple signal layers, standard SMT assembly, or a balanced combination of cost and performance. It is often appropriate for:
- Digital control boards
- IoT and embedded products
- Sensor interfaces
- Communication and computer peripherals
- Industrial controllers
- Moderate-power products with an effective cooling plan
FR4 should not be selected automatically when a board has concentrated heat, high continuous power, or strict thermal limits. In those cases, engineers should perform a thermal assessment and compare standard FR4 with high-Tg, metal-core, ceramic, or other specialized materials.
When Should You Choose Aluminum PCB?
Aluminum PCB construction is worth considering when heat transfer is a primary design requirement and the board can use a compatible layer structure. Typical examples include LED modules, power electronics, motor-control equipment, and compact products where a metal base can connect efficiently to the enclosure or heatsink.
It may be less suitable when the design requires complex multilayer routing, dense high-speed interconnects, extensive through-hole features, or electrical structures that are difficult to combine with the metal base. The decision should be made with the PCB fabricator before the layout is finalized.
Frequently Asked Questions
Is FR4 better than aluminum PCB?
Neither material is universally better. FR4 is generally more flexible for multilayer routing and general-purpose electronics, while aluminum PCB construction is often more useful when heat must be transferred through the board. The best choice depends on power density, routing complexity, operating temperature, and mechanical design.
Can FR4 be used for LED or power electronics?
Yes, FR4 can be used when the heat load is manageable and the product includes an effective thermal design. For high-power LEDs or concentrated heat sources, an aluminum PCB or another thermally optimized structure may reduce thermal resistance and simplify cooling.
Does FR4 have one fixed Tg or Dk value?
No. FR4 is a material category, and different laminate grades can have different Tg, Dk, Df, CTE, resin content, and thermal characteristics. A demanding design should specify the required performance and confirm the actual material datasheet with the manufacturer.
Is aluminum PCB suitable for high-speed signals?
It can be suitable for some designs, but the metal-core stackup and dielectric layer must be evaluated carefully. The proximity of the metal base can affect signal behavior and grounding. Complex high-speed designs may have more routing flexibility with a properly selected multilayer FR4 or high-frequency laminate.
Should material selection happen before PCB layout?
Yes. Material affects layer spacing, impedance, thermal paths, thickness, mounting, and manufacturing rules. Selecting the substrate early helps prevent a layout that must be significantly redesigned after fabrication review.
Conclusion
FR4 remains a practical and versatile choice for a wide range of PCB designs, especially when routing flexibility, multilayer construction, and cost balance are important. Aluminum PCB construction becomes more attractive when heat dissipation, power density, and mechanical thermal integration are the dominant concerns.
The most reliable decision comes from comparing the complete design rather than choosing a material based on popularity or bare-board price. Review the electrical requirements, thermal path, layer structure, operating environment, assembly process, and future production volume together. When these details are clear, PCBAndAssembly can be included in the manufacturing discussion to review the material, stackup, and production requirements before the design moves forward.
