Accurate coordinates alone do not make GIS data survey-grade. The field team also needs the correct reference system, verified correction source, documented receiver configuration, complete feature attributes, and quality-control records that survive the transfer from the data collector into the GIS database.

For projects where GIS features feed engineering, asset management, environmental monitoring, or boundary-related work, teams using network RTK for land surveying provided by RTKdata connect field observations directly to a geodetic reference framework. The workflow removes the need to establish a temporary base station for every job while preserving the coordinate discipline expected from professional surveying.

What Network RTK Adds to GIS Fieldwork

A Real-Time Network (RTN) uses multiple permanent GNSS reference stations instead of one local base. The rover sends its approximate position to the correction service, receives corrections through a cellular connection, and resolves carrier-phase ambiguities to produce a fixed RTK position. Network processing reduces dependence on a single base-rover baseline and gives crews access to corrections across a defined service area.

The U.S. Geological Survey describes RTNs as an efficient real-time GNSS method in which one rover is augmented by a network of fixed Continuously Operating Reference Stations. Its survey guidance also stresses redundancy, blunder checks, satellite configuration, and environmental planning as essential parts of survey-grade GNSS work. For GIS teams, that distinction matters because centimeter coordinates still require field verification before they become authoritative database geometry.

Network RTK also creates consistency between field crews. When several teams work from the same correction infrastructure, reference frame, coordinate system, and collection specification, their observations enter GIS without each crew establishing an independent local positioning framework.

Network RTK Field Workflow

A reliable workflow starts before the rover leaves the office. Project configuration determines whether accurate field observations arrive in GIS with the correct spatial meaning.

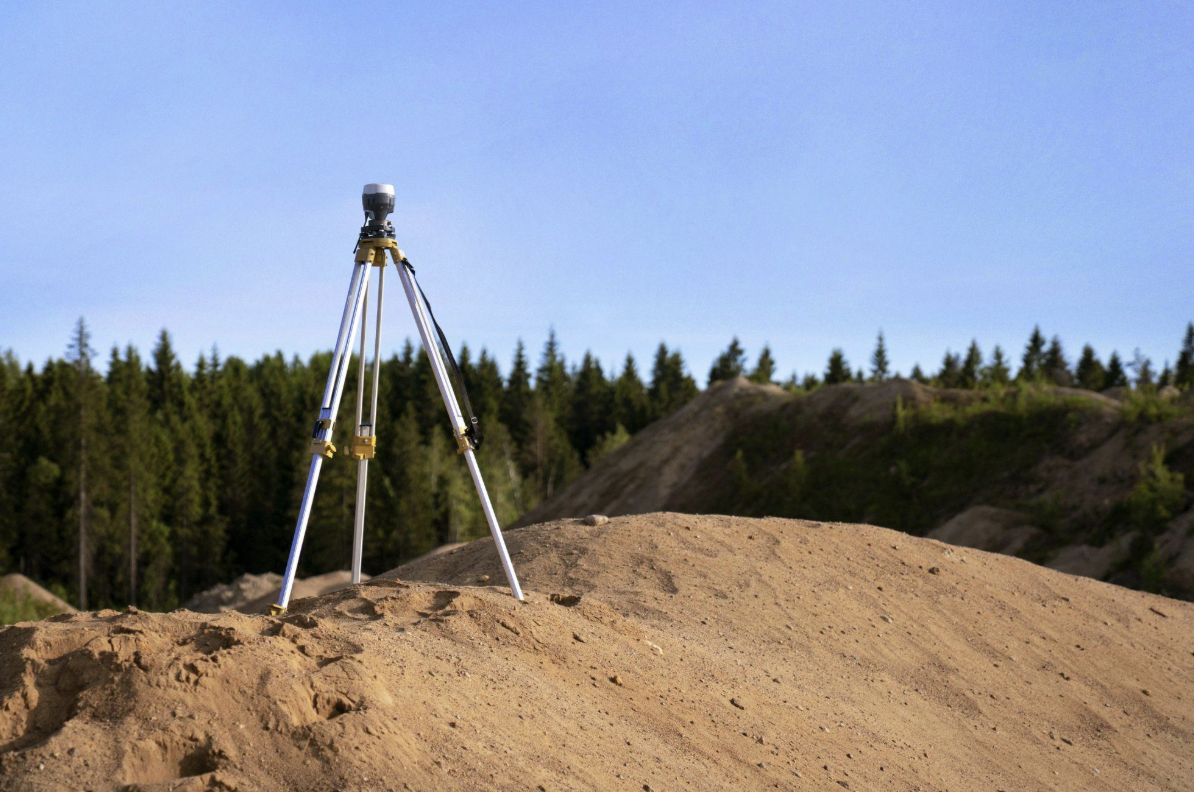

Prepare the GNSS Rover

Set the rover to the project coordinate reference system before collecting features. Confirm datum, projection, units, vertical reference, geoid model, and any site localization required by the client. Recording a precise GNSS position in the wrong reference system creates a precise error that persists through the GIS workflow.

Check the antenna model and measurement method, then enter the correct antenna height for survey points that require it. Load the field schema at the same stage: feature classes, coded domains, required attributes, naming conventions, and collection rules need to match the destination GIS database.

Connect to the RTK Network

An NTRIP connection normally requires the caster hostname or IP address, port, username, password, and mountpoint. The mountpoint identifies the correction product delivered to the rover. Network services also use NMEA GGA messages from the rover to determine its approximate location and generate the appropriate correction stream.

Before production work, verify whether the selected stream represents a virtual reference station, nearest physical station, or another network solution. Confirm its RTCM format, supported GNSS constellations, reference frame, and service area. A successful login proves connectivity; it does not prove that the selected stream matches the survey specification.

Cellular performance belongs in the setup test as well. Walk or drive through the working area while monitoring correction age, RTK state, and reconnection behavior. A correction service that performs correctly beside the vehicle but repeatedly drops inside the actual collection area does not support an efficient field workflow.

Collect and Check Field Data

Do not record survey-grade features immediately after the rover reports a position. Confirm a fixed ambiguity solution, acceptable satellite geometry, current corrections, and stable coordinate values first. Trees, walls, vehicles, fencing, and building façades introduce obstruction and multipath that require a change in occupation position or measurement method.

Critical features deserve redundant observations. Break initialization, move away from the point, obtain a new fixed solution, and measure it again. Agreement between independent fixes provides stronger evidence than storing multiple observations from the same uninterrupted solution.

These checks matter beyond the current survey. Consistent feature definitions, reference systems, and quality metadata support long-term planning when GIS records later inform capital works, maintenance schedules, environmental analysis, or repeat surveys.

Bring Survey Data Into GIS

Preserve the original coordinate reference information during export. Transform coordinates only through an approved GIS workflow, and document the source and destination reference systems. Avoid assigning a new coordinate system to data when the task actually requires a coordinate transformation.

Geometry is only one part of the handoff. Transfer feature IDs, descriptions, collection times, RTK status, correction source, accuracy fields, crew information, and relevant field notes with the coordinates. For assets such as valves, poles, culverts, monuments, and inspection points, attribute completeness determines whether accurate geometry remains useful after fieldwork ends.

Run GIS validation before publishing the dataset. Check null attributes, duplicate IDs, impossible elevations, features outside the project boundary, geometry type, coordinate-system definition, and spatial relationships with existing control or authoritative layers.

Quality Control for Survey-Grade GIS Data

Start and finish field sessions on known control where project specifications require it. Compare observed coordinates with accepted values and record the residuals. A fixed RTK indicator is a receiver status; agreement with independent control demonstrates that the entire configuration is producing coordinates in the intended project framework.

Keep enough metadata to reconstruct each observation. NOAA NGS recommends documenting equipment, datum, observation time, and field personnel for real-time GNSS work. Keep original GNSS observations separate from edited GIS geometry.

Example Workflow

A real federal example comes from the National Park Service Northeast Archeological Resources Program, which reported transitioning to RTK GNSS for survey-grid positioning, topographic mapping, and artifact mapping. The program works extensively in GIS, preparing, synchronizing, and integrating field information through its secured geospatial environment for review, editing, and collaboration.

The workflow illustrates the value of survey-grade GNSS inside GIS rather than as a separate surveying task. Accurate field positions establish survey grids and artifact locations, while structured GIS integration preserves those observations for later analysis and resource management.

For professional GIS teams, that is the central advantage of network RTK. Corrections reduce field setup, but disciplined configuration, independent checks, attributes, metadata, and controlled GIS transformation turn the resulting positions into defensible spatial data.
