Facilities are adding more electrically intensive equipment, often faster than their original distribution systems were designed to support. Selecting the right transformer begins with understanding how the facility operates today, how its loads fluctuate, and where expansion is likely to occur.
Dry-type transformers can be a strong fit for many indoor and safety-sensitive applications, but they are not a universal answer. A sound decision considers electrical capacity, harmonics, cooling, access, protection, environmental conditions, and the cost of future changes.
Why Facility Power Needs Are Changing
Data centers, EV charging installations, battery energy storage systems, automation upgrades, and electrified building equipment can add large, variable loads to a site. The Department of Energy identifies data centers, electric vehicles, charging stations, and renewable generation as major demand drivers for distribution transformers.
That growth can expose limitations in aging feeders, switchgear, panels, and utility service equipment. Rather than sizing solely around today’s peak demand, project teams should build a load profile that separates continuous loads, intermittent loads, motor starting demand, electronic loads, backup power requirements, and realistic future additions.
What Dry-Type Transformers Do

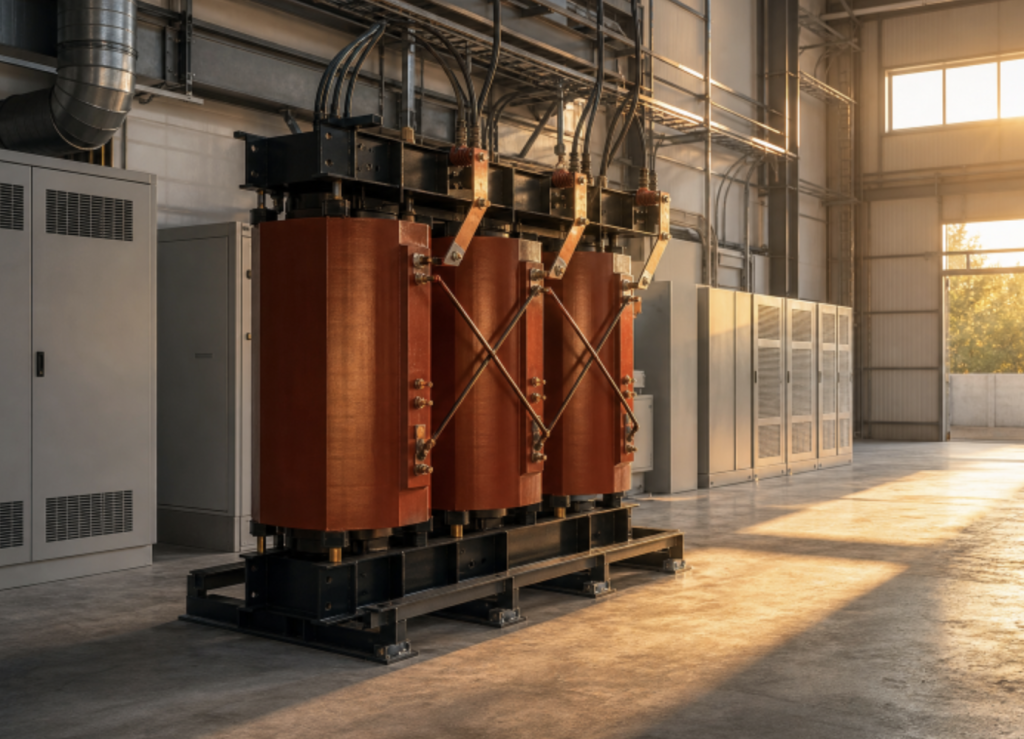

A transformer changes voltage so power can be distributed and used safely by connected equipment. Dry-type units rely on air and solid insulation instead of liquid coolant. Common constructions include ventilated designs, encapsulated units, vacuum pressure impregnated designs, and cast-coil transformers.
Compared with liquid-filled equipment, dry-type transformers may simplify indoor placement and reduce concerns associated with fluid leakage. However, they generally need adequate airflow, may occupy more space for a given rating, and can create audible noise. Dry-type does not mean maintenance-free, nor does it automatically make a unit suitable for wet, corrosive, hot, or heavily contaminated locations.
Where Dry-Type Transformers Fit Best
- Data centers: These sites need dependable operation, careful harmonic planning, redundancy, and limited maintenance downtime.
- EV charging sites: Simultaneous charging, load management, future stalls, and utility constraints can significantly affect capacity planning.
- Battery storage facilities: Inverters and power conversion equipment require coordination of voltage, grounding, cycling duty, and power quality.
- Hospitals and schools: Indoor safety, occupied spaces, clear access, and reliable service are central design concerns.
- Industrial plants: Drives, welders, motors, and automation equipment may create demanding thermal and harmonic conditions.
- Marine and coastal sites: Moisture, salt air, vibration, and corrosion require appropriate enclosures and environmental protection.
Key Selection Factors
Before requesting a design or quotation, collect the operating information that determines whether the transformer will perform properly over its full service life.
- Voltage, frequency, and phase: Confirm primary voltage, secondary voltage, frequency, single-phase or three-phase service, and required taps.
- kVA rating: Include steady demand, continuous loads, motor starts, expected diversity, and planned expansion.
- Impedance: Transformer impedance affects available fault current, voltage drop, and protection coordination.
- Temperature rise: Ambient room temperature, loading level, and ventilation directly influence operating temperature and insulation life.
- Connection and grounding: Review winding configuration, neutral needs, separately derived system requirements, bonding, and protective devices.
- Enclosure, sound, and footprint: Match the equipment to dust, moisture, corrosion, noise limits, door openings, lifting routes, floor loading, and service clearances.
Managing Harmonics And Power Quality
Harmonics are distortions in the electrical waveform created by non-linear loads. Common sources include variable-frequency drives, UPS systems, LED lighting, computers, battery chargers, and EV charging equipment. Excessive harmonic current can add heat, increase losses, cause vibration, contribute to nuisance trips, and shorten equipment life.
A K-factor-rated transformer, harmonic-mitigating design, line reactor, or active filter may be appropriate when measurements and engineering analysis support their use. The best starting point is actual power-quality data, including voltage balance, harmonic spectrum, load variation, and power factor, rather than assumptions based only on equipment nameplates.
Safety, Ventilation, And Room Planning
Transformer placement influences both safety and long-term reliability. Plan for code-required working space, doors that allow replacement, clear access to terminations, airflow paths, room heat rejection, fire separation, and housekeeping. Dust buildup, moisture, blocked ventilation openings, and excessive ambient temperatures can all reduce performance.
Early coordination among the electrical engineer, architect, utility, fire protection team, contractor, and authority having jurisdiction helps avoid expensive redesigns. Protection, grounding, cooling, disconnecting means, and installation details should align with applicable rules, including the practical considerations covered in NEC transformer installation requirements.
Standards, Testing, And Documentation
A nameplate provides important ratings, but it does not replace a complete review of the equipment submittal. Request outline drawings, wiring diagrams, impedance data, loss data, sound data, weight, enclosure information, test reports, certifications, installation instructions, and maintenance guidance.
For critical facilities, documented routine tests and clearly defined commissioning steps are especially valuable. Commissioning should include visual inspection, torque verification, insulation checks where appropriate, phase and voltage confirmation, protection checks, and baseline temperature or load readings for future comparison.
Common Questions
Are Dry-Type Transformers Safer For Indoor Use?
They avoid liquid coolant and leakage concerns, which can simplify some indoor fire-planning decisions. Safe operation still depends on proper protection, grounding, ventilation, clearance, installation, and maintenance.
Do Dry-Type Transformers Need Maintenance?
Yes. Inspection frequency should reflect the environment and duty cycle. Typical tasks include cleaning, checking connections, reviewing temperatures, inspecting insulation and enclosures, and addressing airflow restrictions.
How Do EV Chargers Affect Transformer Sizing?
Charging demand depends on charger ratings, simultaneous use, managed charging controls, future expansion, harmonics, and available utility capacity. Designing around the maximum possible connected load without studying diversity can lead to unnecessary oversizing.
What Belongs In A Transformer Specification?
Include voltage, frequency, phase, kVA, taps, impedance, insulation class, temperature rise, enclosure, sound limits, environmental conditions, accessories, certifications, testing requirements, drawings, and maintenance documents.
Final Takeaway
Transformer selection is a system decision, not a catalog shortcut. A well-planned dry-type installation balances demand, power quality, safety, space, maintenance, code requirements, and future growth. Careful load analysis and early coordination help facilities avoid costly changes while supporting stable operation for years to come.
